Seattle’s Aurora Bridge Needs a Safety Redesign

150924_duck_ax_a_4

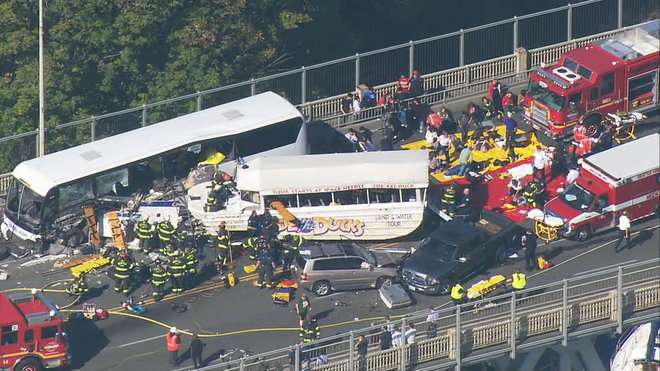

The crash scene on Thursday morning. (KOMO News)

Author’s Note: This article was updated September 24 and 28, 2015 to add new information.

On Thursday morning a tragic crash on Seattle’s Aurora Bridge between an amphibious Ride The Ducks tour vehicle and a charter bus left at least five people dead and 52 people injured. While the investigation is only beginning and many factors could be at play, the design of the bridge is almost certainly a key cause of the crash. The Aurora Bridge must be redesigned to address the simple but critical safety issues of lane width and speed.

Officially named the George Washington Memorial Bridge, the bridge that carries Aurora Avenue opened in 1932. It’s 70 feet wide, nearly 3,000 feet long, and carries six lanes of traffic on Washington State Route 99.

A 2010 article from the Seattle PI reveals the crux of the bridge’s safety problem: “Lane width on the bridge from west to east is 10 feet, 9 feet, 9.5 feet, 9.5 feet, 9 feet and 10 feet. The speed limit is 40 miles per hour, though drivers often break that.”

I am a frequent advocate for urban lane widths less than the rural highway standard of 12 feet (which is WSDOT’s preference); down to 10 feet is ideal for city streets, but 11 feet is fine for routes frequented by buses and heavy trucks. Anything less than 10 feet at highway speeds is dangerous. Additionally, roadways with more lanes encourage drivers to break posted speed limits.

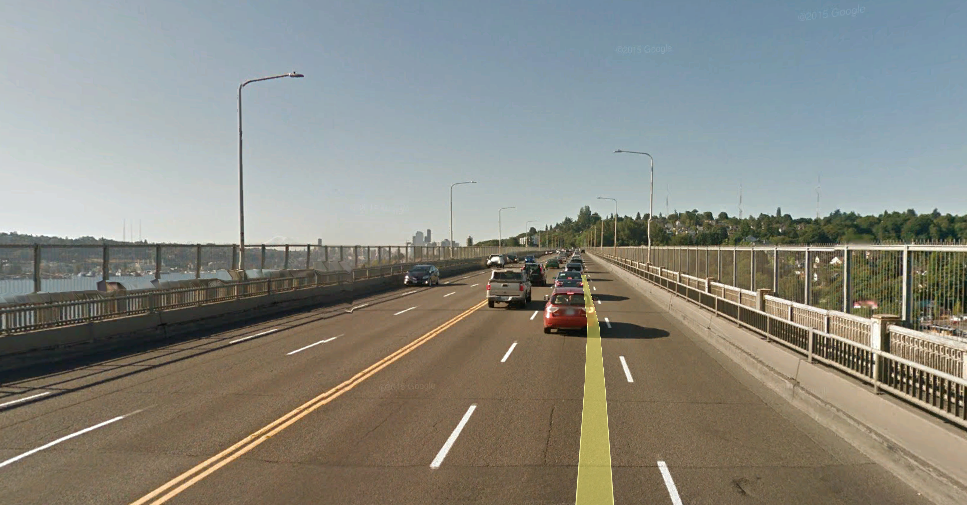

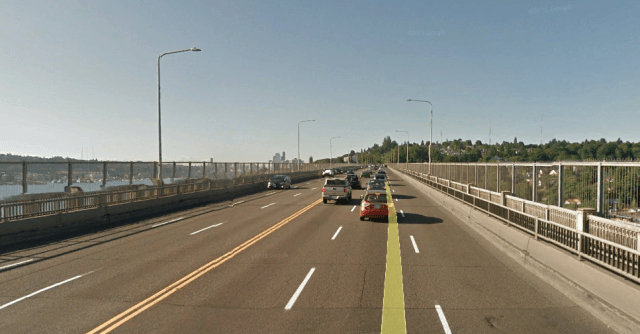

A view of the bridge's roadway and sidewalks. (Google Earth)

A view of the bridge’s six lane roadway and sidewalks. (Google Earth)

Early eyewitness reports indicate the two vehicles were traveling in opposing directions before the crash, although it is unclear what lanes they were in. One rumor is the Duck vehicle blew a tire. Regardless, with the opposing lanes only 9.5 feet wide, other lanes as narrow as 9 feet, and without a central barrier on this high volume, high speed roadway, the type of collision that happened Thursday morning was inevitable. The fact that both vehicles involved were wide (buses are 8 to 9 feet wide) multiple-passenger vehicles compounded the chance and horror of this collision.

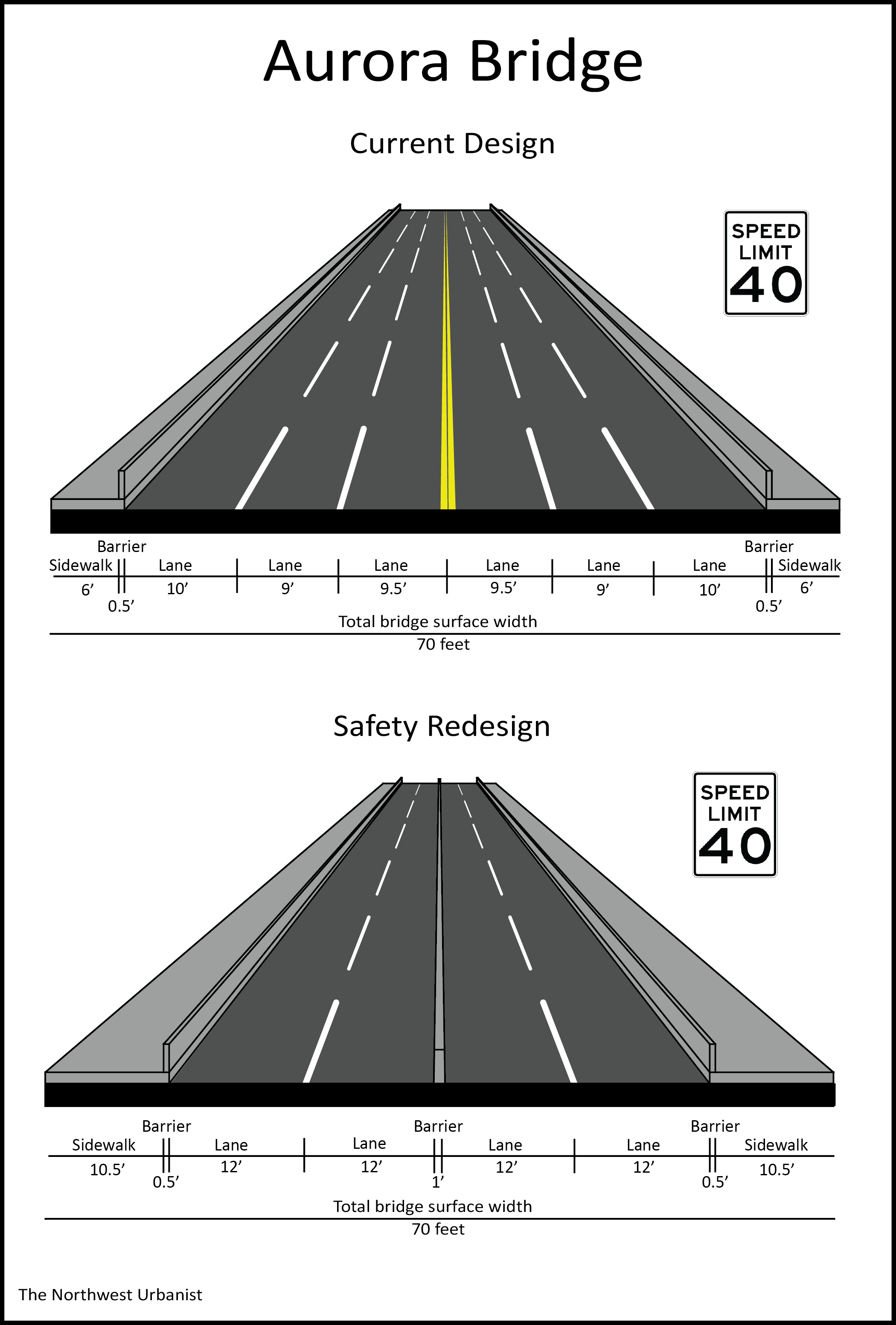

I’ve been considering making this post for some time, but today it is suddenly and unfortunately relevant. The solution to preventing this from happening again is simple: rechannelize the lanes on the bridge and add a central barrier like the rest of Aurora Avenue. The resulting extra space must be used to widen the bridge’s sidewalks for safe passage by people walking and bicycling, and could also be used to provide a wider median than proposed. A best guess of the current design and one possible redesign is illustrated below.Aurora Bridge-01-01Other possible solutions are to channel the roadway into five lanes, with the center lane being reversible based on traffic flows using signals or a movable median barrier. This is what is done on the Golden Gate Bridge in San Francisco (see this video of how it works) and the three-lane Lions Gate Bridge in Vancouver, B.C.

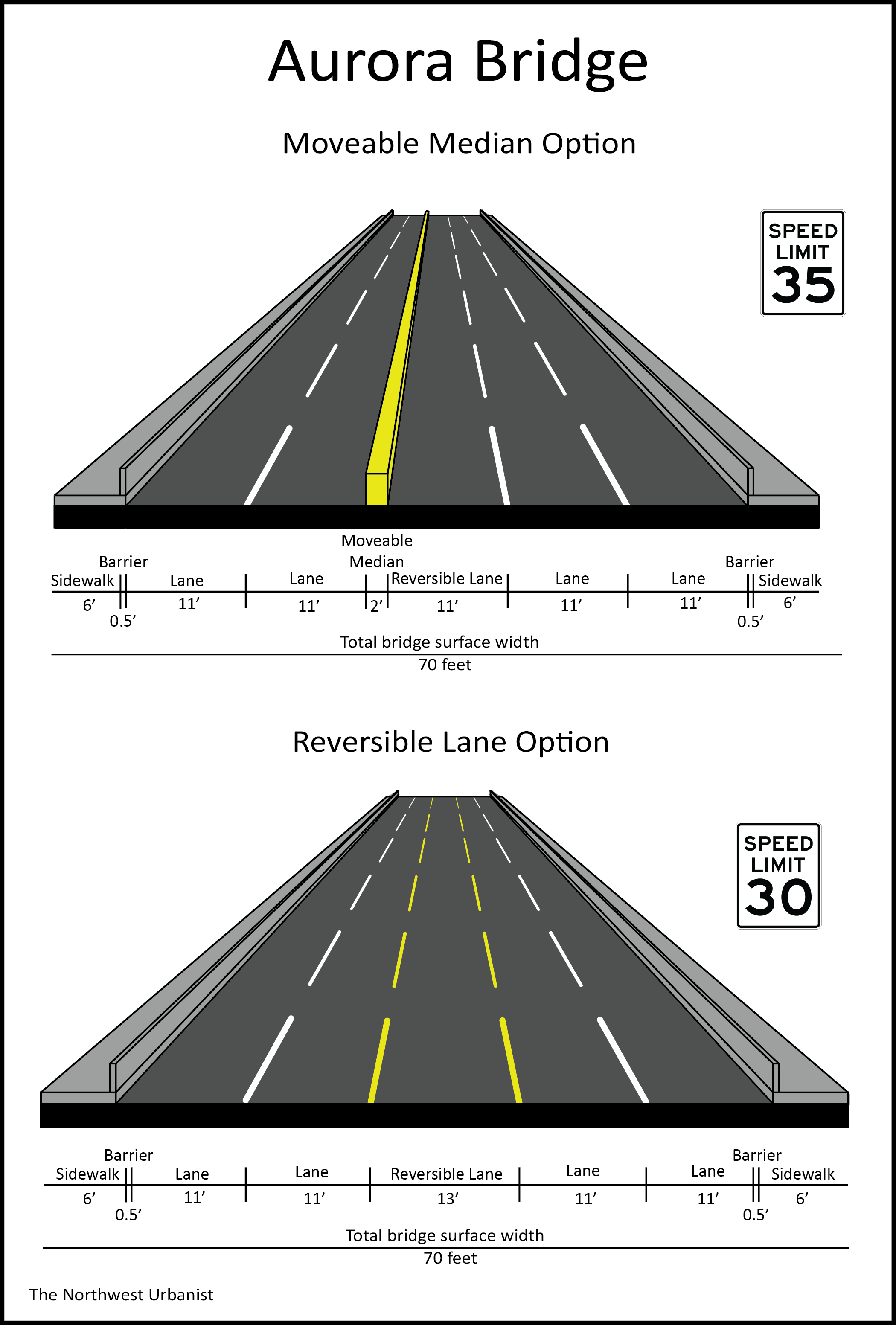

Aurora Bridge-02If these aren’t enough options, the official recommendations from WSDOT’s 2003 corridor study should be implemented. The study says, “The lanes are so narrow that buses and other large vehicles sometimes straddle two lanes while traveling on the bridge. The combination of narrow lanes, lack of a median barrier, and driver actions (speeding, following too close, etc) creates a risk for sideswipe, rear-end and head-on traffic accidents.”

The study suggests, “The proposed bridge improvement (Figure 6-6) would widen the lanes from 9.5 feet to 11.5 feet for the curb and inside lane and 11 feet the middle lane. A median barrier would be added to the bridge and approaches, and would connect to the existing barriers at the N. 38th Street and the Halladay Street intersections. The proposed additional lane widths and median barrier would require relocating the sidewalks below the bridge deck. In addition, the sidewalks would be widened to 10 feet to provide for multiple users and non-motorized vehicles.” The Seattle Times reports that Washington state lawmakers did not provide any funding to pursue these changes.

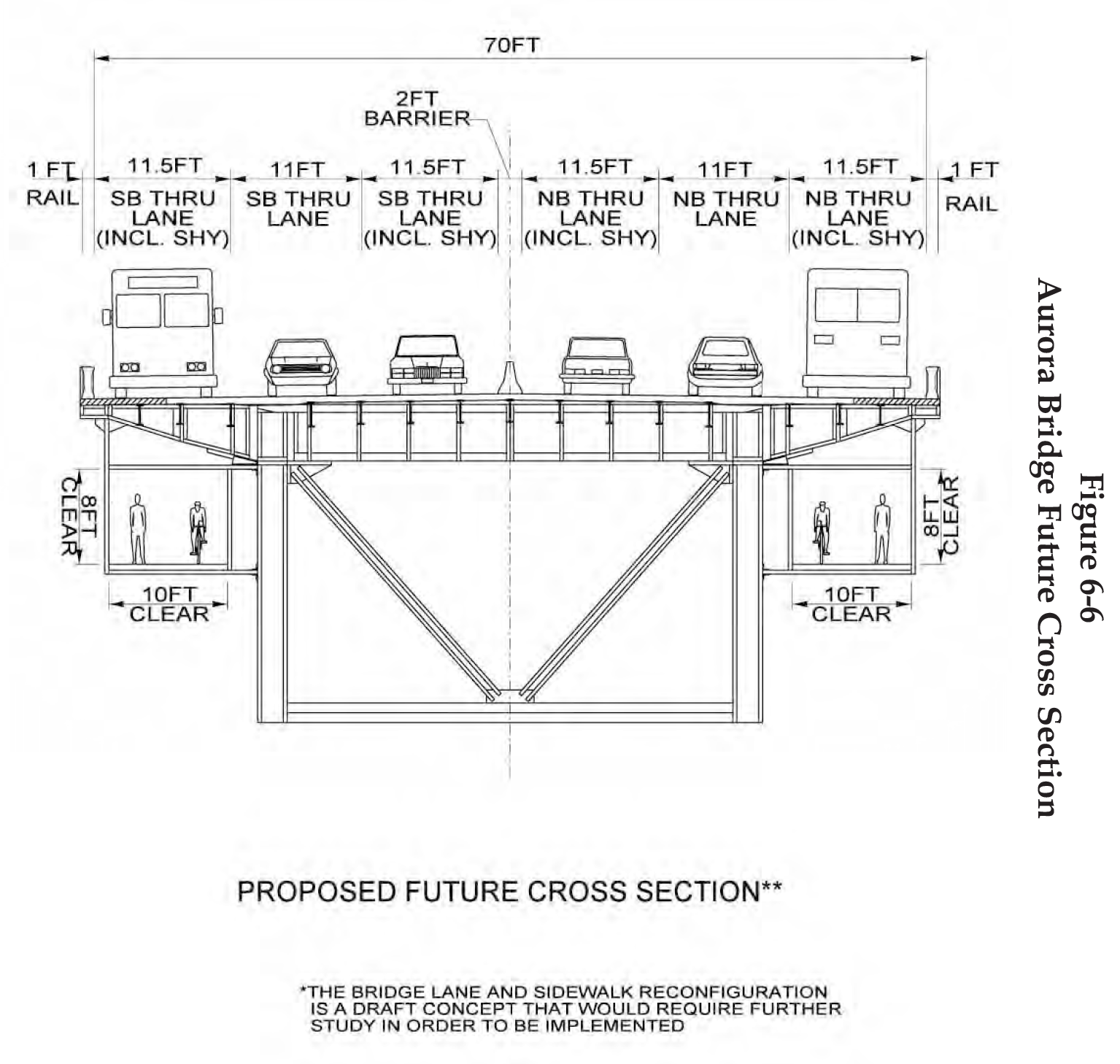

Aurora Bridge Redesign

A possible redesign of the Aurora Bridge would support wider lanes and a median barrier by relocating the sidewalks beneath the bridge deck. (Washington State Department of Transportation)

Issues of traffic congestion and cost are insignificant compared to the potential and realized loss of life on this bridge. The state has shown a willingness to improve the bridge already; in 2011, a $4.8 million suicide barrier was built along the edges of the bridge. In the long term, the Aurora Bridge likely needs to be expensively retrofitted or completely rebuilt (which the WSDOT study estimates would cost $200 million in 2003 dollars). It is over 80 years old and functionally obsolete.

A safety redesign will fulfill Seattle’s Vision Zero strategy for eliminating traffic deaths and serious injuries by 2030. Reconfiguring the Aurora Bridge will be one of many big steps towards improving traffic safety in Seattle. Local and state leaders must act now to prevent today’s tragedy from happening again.
